SHH110

Hunter Pro

Enhanced FPV Jammer

Hunter Pro is a portable integrated detection and countermeasure device specifically designed for FPV drones. It provides timely alerts by detecting FPV video transmission and remote control signals. Equipped with an FPV analog video reception module, it can also retrieve real-time footage from hostile FPV drones.

downloaddownload

Capabilities

Detection & Early Warning
FPV Video Interception
Countermeasure & Disruption
Fault Management
/
Detection & Early Warning
In the event of a system malfunction, a fault icon will be displayed on the screen. Users can retrieve system logs and submit them to technical support for troubleshooting and diagnostics.
FPV Video Interception
The FPV video interception module supports real-time reception of analog FPV transmissions at 1.2GHz (1.06–1.36GHz) and 5.8GHz (4.9–5.9GHz). This capability enables continuous monitoring of intruding FPV video feeds, providing critical intelligence for precision countermeasures.
Countermeasure & Disruption
The FPV jamming enhancement module covers the 300–1100MHz frequency range with an output power of 100W. Utilizing digital baseband signal generation technology, it optimizes interference waveforms to reduce the jamming-to-signal ratio (J/S) requirement for effectively neutralizing control links. Additionally, the FPV jamming antennaadopts a directional interference design, significantly enhancing effective radiated power (ERP) toward targeted threats.
Fault Management
In the event of a system malfunction, a fault icon will be displayed on the screen. Users can retrieve system logs and submit them to technical support for troubleshooting and diagnostics.

advantages

Integrated Detection and Countermeasure
Customized Full-Spectrum Coverage from 300M to 6GHz
Software-Defined Radio (SDR) Technology
Horizontal and Vertical Dual-Polarization Coverage

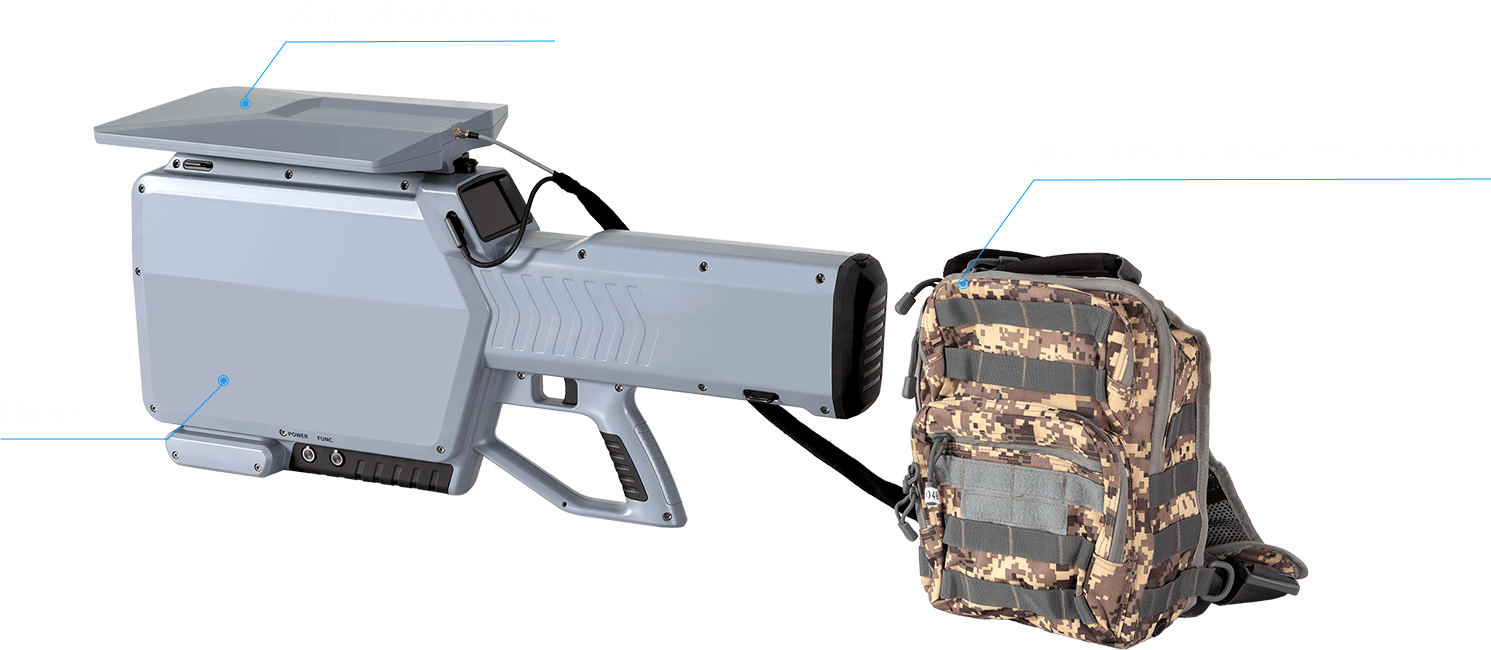

core component
